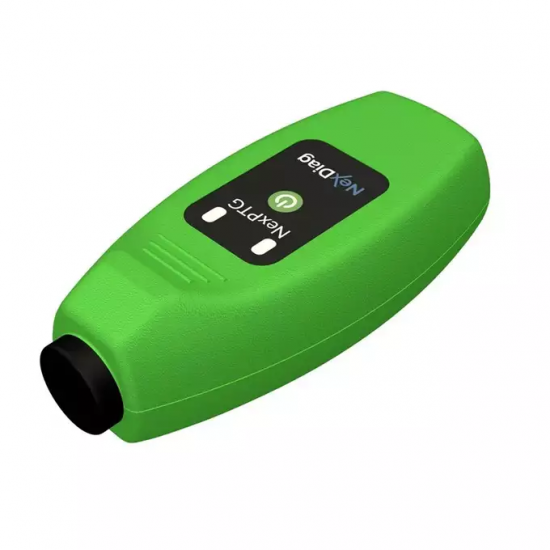

NEXPTG ECONOMIC

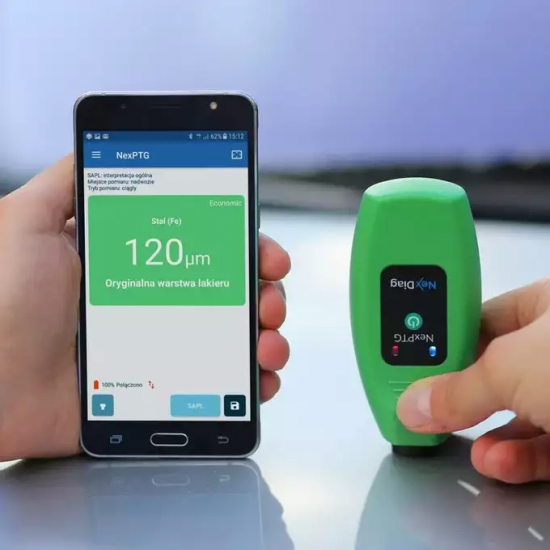

NexPTG Economic is a a base model of the meter, which allows you to perform fast and precise measurements on steel elements of the car. The combination of the device and the phone gives great opportunities unattainable for traditional meters.

The Economic version enables effective test the thickness of the lacquer coat.

The meter automatically interprets the obtained results, informing the user about the current condition of the coating.

This is the most modern device of its kind on the market.

Professional software

NexPTG has a dedicated application. You can install it on any mobile device equipped with iOS or Android.

The dedicated application will allow you to examine the lacquer coat with unprecedented accuracy and precision.

Thanks to the Lacquer Coating Analysis System you can analyse the lacquer on the surface of the entire body in an instant, and the application will help you interpret the results of measurements.

No other device on the market offers such possibilities.

Technical data:

• Range of measurement: 0 - 1000 μm (0 - 39,37 mils)
• Measurement resolution: 10 μm (0,4 mils)
• Type of probe / Probe ending: Flat
• Curve measurement: No
• Measurement memory: Up to 100*
• Substrate recognition: Steel, Galvanized Steel**
• Lacquer Coating Analysis System - SAPL: Basic
• Multilingual menu: Yes - PL, EN, DE, RU, CZ, FR, ES, IT, FE, HE, NL, NO, TR, HU, SA, JP
• Suggested measurement points: No
• Creation of reports and measurement history: No
• Export of reports and measurement history to e‑mail: No
• API communication: No
• Dedicated API (additional paid): No
• Number of measurements per second: 10
• Time of continuous work on alkaline batteries: Up to 100h
• Ambient temperature for the gauge's work: From -20 to + 40 °C
• Unit of measurement: μm or mils
• Substrate testing: Steel, Galvanized Steel
• Communication with the application: Bluetooth 4.0 LE
• Application update: Free
• Message indication: Text, graphic, audio
• Housing colour: Green
• Weight of the device without batteries: 57 grams
• Size: 108 x 50 x 28 mm
• Availability on systems: Android, iOS
• Supported batteries: 2xAA
• Measurement modes: Continuous
• Testing relative to reference point: No
• Automatic device shutdown in period of inactivity:  Yes
• Measurement statistics: No
• Enrichment with new features: No
• Buyer’s guide: No

Minimum system and hardware requirements for the NexPTG mobile application

• Android: telephone, tablet, System Android 4.3 or later, Bluetooth with Bluetooth Low Energy
• iOS: telephone, tablet, System iOS 8 or later, iPhone 5s or later
• Android Wear: Smartwatch, any smartwatch with this system

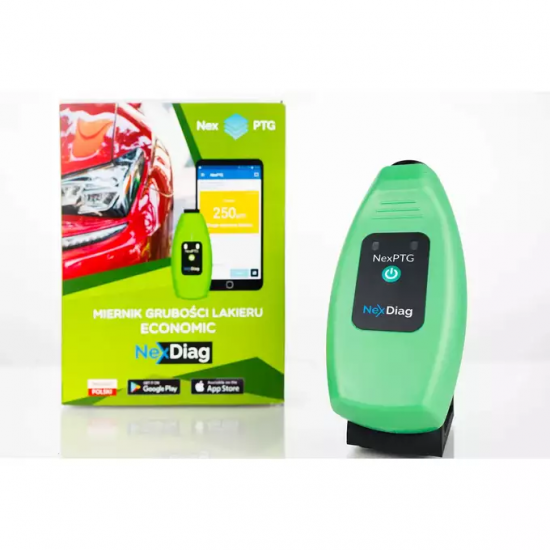

Set contains

• device NexPTG
• calibration set
• instruction manual
• set of alkaline batteries
• box
